TANYUN Solid Rocket Composite Propellant


Headquarters: No. 75,Xinhu Street,Xishi District, Yingkou,Liaoning, China 115004

Shenzhen Office: Floor 15A,No. 111 Taizi Road, Shekou, Nanshan District, Shenzhen, Guangdong, China 518100

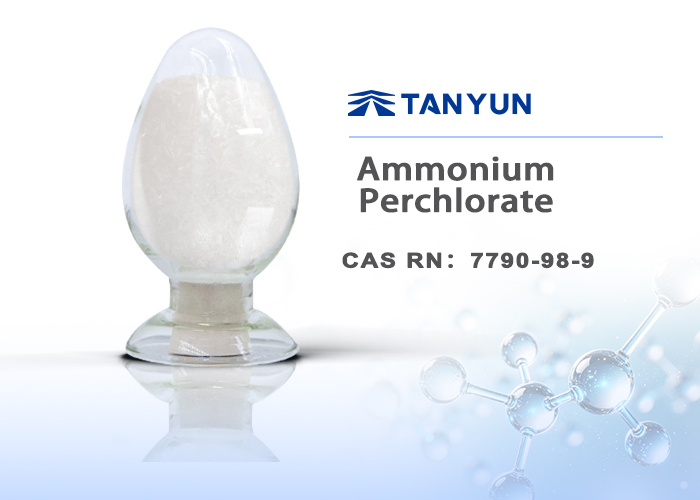

Ammonium Perchlorate

Executive standard: GJB617A-2003
CAS No. 7790-98-9
English name: Ammonium Perchlorate
English abbreviation: AP
Chinese name: 高氯酸铵

Product parameters

English name: Ammonium Perchlorate
Chinese another name: 高氯酸铵
CAS RN:7790-98-9
1. Product Profile
Ammonium perchlorate (AP) is white crystal, soluble in water and hygroscopic. It is a kind of strong oxidizers. When AP is mixed with reducing agent, organics, inflammable materials, such as, sulfur, phosphorus or metal powder, the mixture can caused the risk of burning or explosion. When it is contacted with strong acid, the mixture can also have the risk of explosion.
1.1 Structure formula:

1.2 molecular weight: 117.49

1.3 molecular formula:NH4ClO4
2. Technical indexes:

Item Index
Type A Type B Type C Type D
Appearance White, spherical or non-spherical crystalline particles, no visible impurities
AP content (In NH4ClO4), % ≥99.5
Chloridate content (In NaCl), % ≤0.1
Chlorate content (In NaClO3), % ≤0.02
Bromate content (In NaBrO3), % ≤0.004
Chromate content (In K2CrO4), % ≤0.015
Fe content (In Fe), % ≤0.001
Water Insoluble Matter, % ≤0.02
Sulfated ash content, % ≤0.25
pH 4.3-5.8
Thermostability (177±2), h ≥3
Sodium lauryl sulfate, % ≤0.020
Total water, % ≤0.05
Surface water, % ≤0.06
FragilityType I ≤1.5% ≤1.5% ≤1.5%
FragilityType II ≤7.5% ≤7.5% ≤7.5%
FragilityType III ≤2.6% ≤2.6% ≤2.6%
Aperture , µ Index
Type Ⅰ Type Ⅱ Type III
450 0~3
355 35~50 0~3
280 85~100 15~30
224 65~80
180 90~100 0~6
140 20~45
112 74~84
90 85~100
Grade C: Particle size index
Categories TypeⅠ TypeⅡ Type III
Weight mean diameter, µ 330~340 240~250 130~140
Batch standard deviation, µ ≤3
Grade D: Particle size index
Aperture, µ Screening content%
TypeⅠ TypeⅡ Type III
450~280 55
280~180 55
140~112 55

3. Application: Ammonium Perchlorate (AP) has been used as an oxidizer for rocket propellant and mixed explosive. It can also be used in fireworks, hail prevention agent, oxidizer, analytic agent, etching agent, etc. It can also be used to produce other borohydrides, reducer, drifting agent for wood and paper, foaming agent for plastics, boranes, etc. In addition, AP is used in measurement of phosphor content and medicines.
4. Package: Iron barrel packaging with inner plastic bag. After removing the air in the bag, the mouth of the bag should be tightened.
5. Storage: Stored at cool, dry and ventilate place. Forbid to heat and sun-baked. Shelf life: 60 months. It is still available if the retest results of the properties are qualified after expired date. Keep away from inflammable and explosive goods. Do not store together with reducing agent, organic, combustible goods.
6. Transportation: Avoid rain, sun-baked. No violent collision.


We are able to develop custom-made products according to the clients'requests

We have 5 R&D bases (Shanghai, Hangzhou, Suzhou, Yingkou, Shenzhen), hundreds of synthesis leading experts and PhDs in chemistry.

We own experienced R&D capability and rich experience in production, and provides you with a variety of organic chemicals, medical intermediates research, development, production, etc. on behalf of a range of high quality customized service.

As of 2015, We have developed over 60 kinds of custom chemicals for the customers, and 3 kind products, such as copper chromite dehydrogenation catalyst, have already consigned a usage in batch with customer sign-off. 2 invention patents have been applied. 6 kinds of customized products, such as efficient curing agent, have been applied in pilot trials and pilot production by customers.

More than 10 kinds of chemicals have been in R&D, such as nano-waterproof materials, oil additives and fine chemical intermediates.

TANYUN produces boron, ferrocene, solid propellant and more series of chemicals, which cannot be all listed on the website. For more information about products and MSDS, please contact ty@tanyunchem.com. You can also consult related product customization and latest research and development information.
