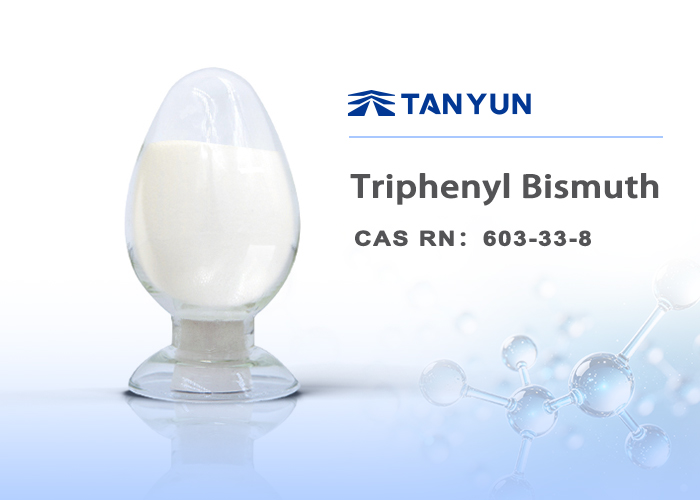

Triphenyl Bismuth

Executive standard: GJB5276-2003
CAS NO. 603-33-8
English name: Triphenylbismuth
English abbreviation: TPB
Chinese name: 三苯基铋

Product parameters

Executive standard: GJB 5276-2003

Chinese alias: 三苯基铋

CAS RN: 603-33-8

1. Physical and chemical properties:

1.1 Molecular formula: C18H15Bi

1.2 Molecular Weight: 440.3

1.3 Structure formula:

Structure formula

1.4 Solubility: Insoluble in water, but dissolved in anhydrous alcohol and n-heptane.

1.5 Stability and reactivity: Stable at normal temperature and pressures, but reacts with moisture, strong oxidant and strong ultraviolet light.

2. Technical indexes:

Item Index
Purity, % ≥97.5
Melting point, ≥77.0
Bi content, % 47.0-47.9
Insoluble content in acetone, % ≤0.10
Mg content, % ≤0.003
Total halogen content (in Cl), % ≤0.05
Appearance White  or milky crystal,
no visible impurities

3. Application: Triphenyl bismuth (TPB) has been used as the curing catalyst of HTPB propellant. TPB could decrease curing temperature and reduce curing time of the propellant, as well as it has no damaging effect on the performance and mechanics properties. The dosage of TPB is 0.006%-0.05% of total weight for the propellant. Curing time is a week in 50℃. TPB can be also used as the catalyst of the polymerization for ethyne into cyclooctatetraene, formaldehyde, the curing agent for polycyclochlorides, and other monomers etc.

4. Safety instructions: Toxic by ingestion and inhalation. Eye and skin contact can cause inflammation. Operation must be installed with rubber gloves, a respirator and eye protection by wearing protective clothing.

5. Packing: Sealed, hard, cycloidal plastic case. Net weight 500g or 1000g per bottle. Packing can be adjusted according to the clients’ requests.

6. Storage: Stored in a cool, ventilated place. The shelf life is 12 months after manufacturer date. It is still available if retest result is qualified after expire date.

7. Transportation: Should prevent rain drenched, sunning and ultraviolet during transportation. Keep away from strong oxidants.

Customization

We are able to develop custom-made products according to the clients'requests

Tanyun has R&D Center located in Hangzhou with leading experts and PhDs in chemistry,

We have experienced R&D capability and rich experience in production be able to provide various of organic chemicals, research, development, production of medical intermediates, etc.

Tanyun have created 47 patents. including 17 invention patents (including 2 patents of national defense), and have developed over 20 kinds of customized chemicals for the customers. in which 3 products, copper chromite dehydrogenation catalyst, have been already accepted in batch production by customer. 6 products, efficient curing agent, have been applied in pilot trials and pilot production by customers.

More than 10 kinds of chemicals have been in R&D, such as nano-waterproof materials, oil additives and fine chemical intermediates.

TANYUN produces boron, ferrocene, and more series of chemicals, which cannot be all listed on the website. For more information about products and MSDS, please contact ty@tanyunchem.com. You can also consult related product customization and latest research and development information.
